Pet Food Flat Bottom Box Pouch for Premium Kibble





Pet Food Flat Bottom Box Pouch for Premium Kibble

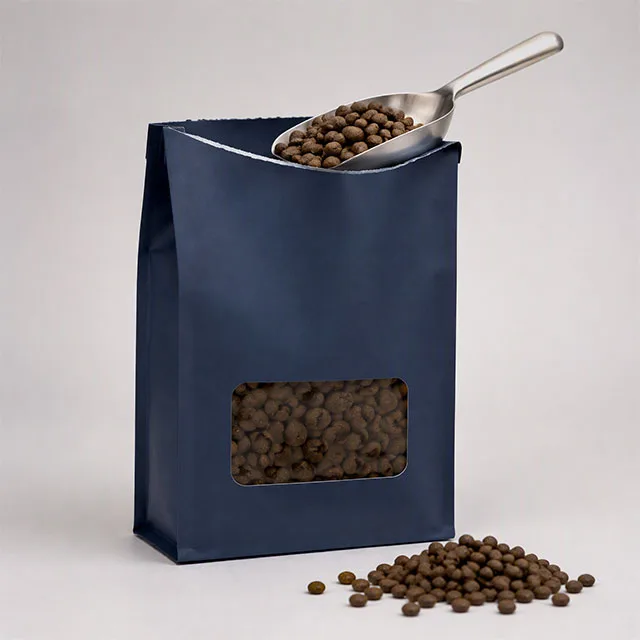

The Pet Food Flat Bottom Box Pouch — sometimes called a “quad-seal bag” or “box pouch” — represents the premium tier of dry pet food packaging, engineered for brands that compete on shelf presence rather than price. Unlike standard stand-up pouches that taper at the top, the box pouch maintains a consistent rectangular cross-section from base to top, creating a billboard-like front panel that maximizes brand graphics visibility and a wide, stable footprint that won’t tip over on retail shelves.

Color

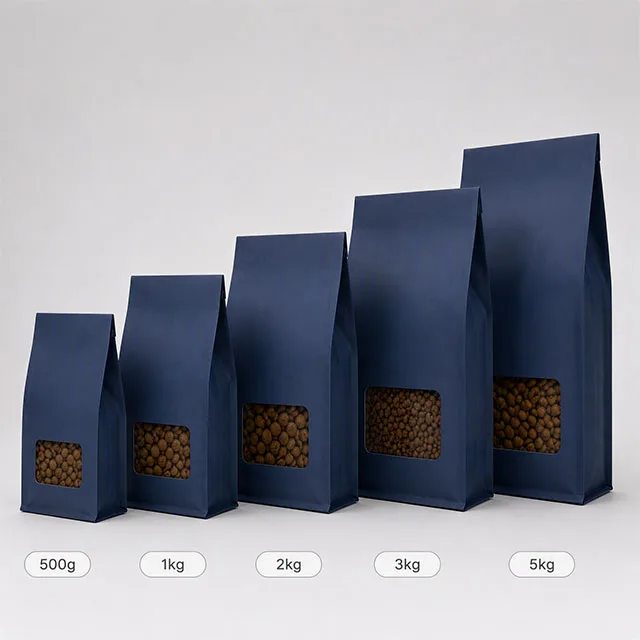

Size

500g
1kg
2kg
3kg
5kg
Custom Size Available

Shipping

Express (DHL/FedEx/UPS), Sea Freight, Air Freight

Payment Terms

T/T (Bank Transfer), L/C at Sight, PayPal, Western Union, Alibaba Trade Assurance

Lead Time

Samples: 3-5 working days | Mass Production: 15-25 working days

Samples

Product Description

Premium Matte and Sustainable Kraft Material Variants

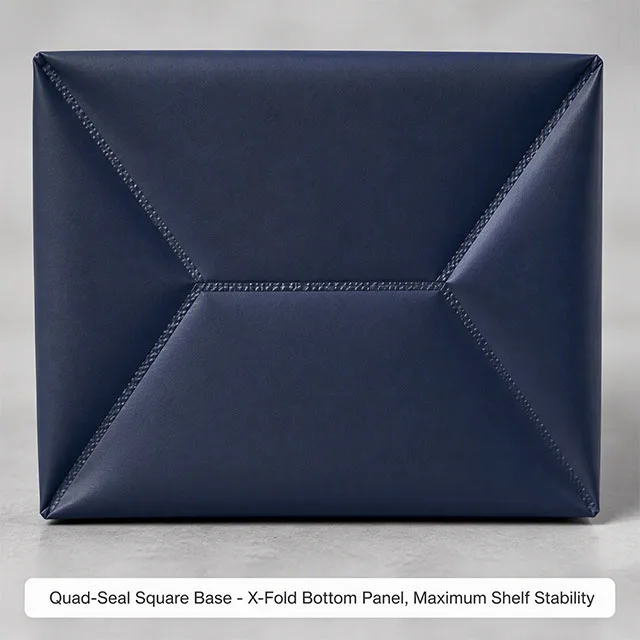

The square bottom geometry isn’t just aesthetic — it fundamentally changes the palletization economics. Flat bottom pouches achieve approximately 15-20% higher pallet density than equivalent-volume stand-up pouches because their rectangular shape nests efficiently without the wasted space created by tapered pouch tops. For brands shipping containers of pet food internationally, this packing efficiency alone can reduce freight costs by thousands of dollars per shipment.

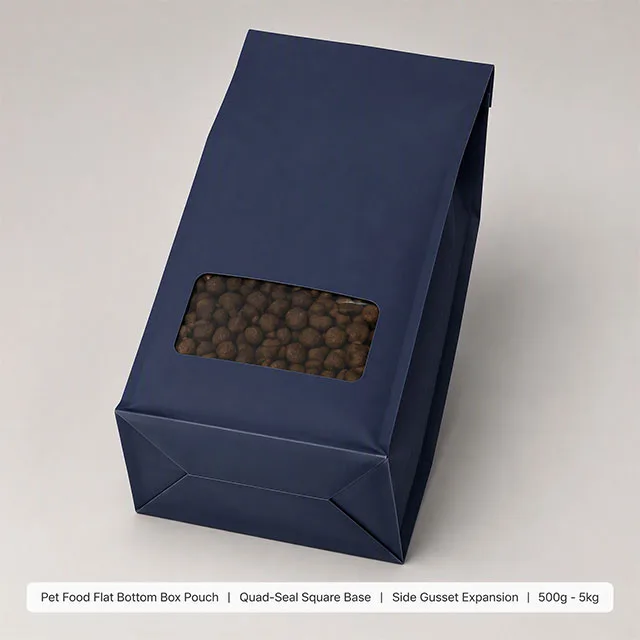

The side gusset structure creates an internal volume that opens into a near-perfect rectangular prism when filled — the ideal geometry for automated filling lines and for consumer pantry storage. This expansion capability also means the pouch ships flat (minimizing empty packaging freight costs) and only achieves its full volume at the filling station, a significant supply chain advantage over pre-formed rigid containers.

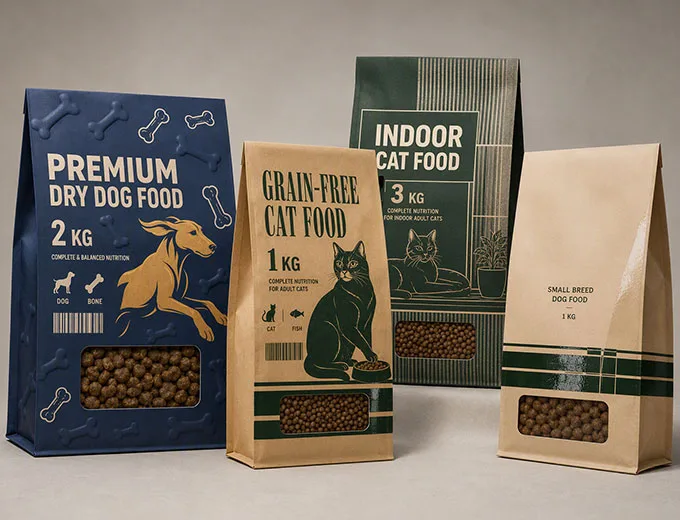

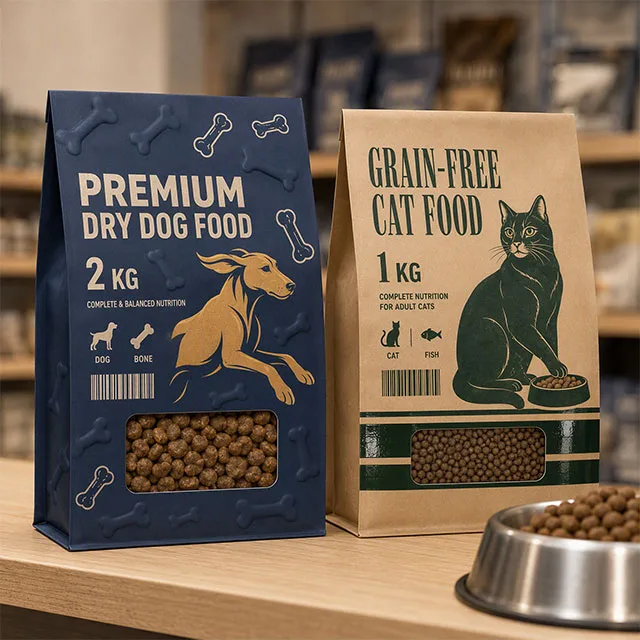

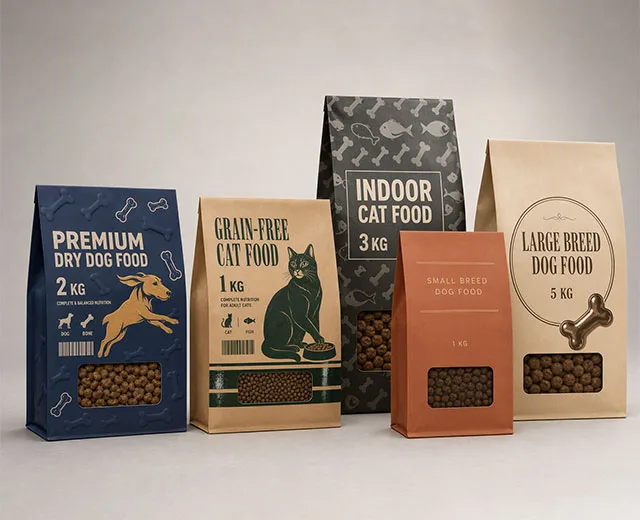

We offer this format with two distinct material personalities: a soft-touch matte laminate with registered embossing for luxury boutique pet food brands targeting premium price points, and a natural kraft paper exterior with aluminum foil barrier interior for brands emphasizing sustainability alongside shelf appeal. Both variants accept full-color rotogravure printing. Key applications: super-premium dry dog food, grain-free cat food, freeze-dried raw coated kibble, and specialty small-animal feed sold through boutique pet retailers.

Specifications

Customizable Color & Size Options for Every Market Need

Color	Size
Midnight Blue	500g
Sage Green	1kg
Terracotta	2kg
Charcoal Gray	3kg
Sand Beige	5kg
Custom Color Available	Custom Size Available

Printing Process

Soft-Touch Matte and Embossing for Premium Tactile Appeal

The flat bottom box pouch demands the highest level of print registration precision among all pouch formats because the rectangular front panel functions as a single uninterrupted canvas — there are no gusset folds or tapered edges to hide registration drift. Every element printed on the front face must align perfectly with every element on the side panels and bottom panel for a seamless 360-degree brand presentation.

We achieve this through a combination of 12-color rotogravure printing with automated camera-based registration control that adjusts cylinder timing in real-time during production. The system tracks registration marks printed in non-visible areas and makes micro-corrections at each color station — maintaining alignment tolerance within 0.1mm even across the full 500mm print repeat length of the expanded pouch.

The soft-touch matte overcoat is a defining feature of premium pet food pouches — it creates a velvety tactile sensation distinctly different from the glossy “plastic feel” that consumers associate with lower-quality products. Applied as a registered coating (covering specific zones rather than the entire surface), it can be combined with spot gloss accents on the brand logo area for a striking matte-gloss contrast. The registered embossing option adds a third tactile dimension — raised textures following printed pet-themed graphics — creating a multi-sensory packaging experience that drives premium shelf presence and consumer quality perception.

Lining Decoration

Outer Layer

Theinner layer carries an anti-static addtive sofine kibble dust cannot cling to the pouch interior during filing.

Middle Layer

EVOH + Metallised,Co-Extruded

Contact Layer

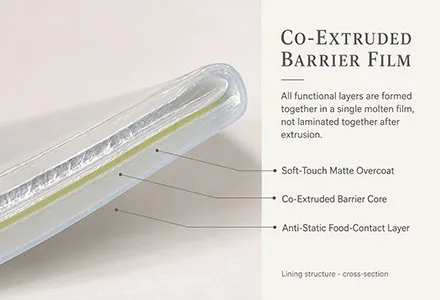

All functional layers are formed together in a single molten film, not laminated together after extrusion.

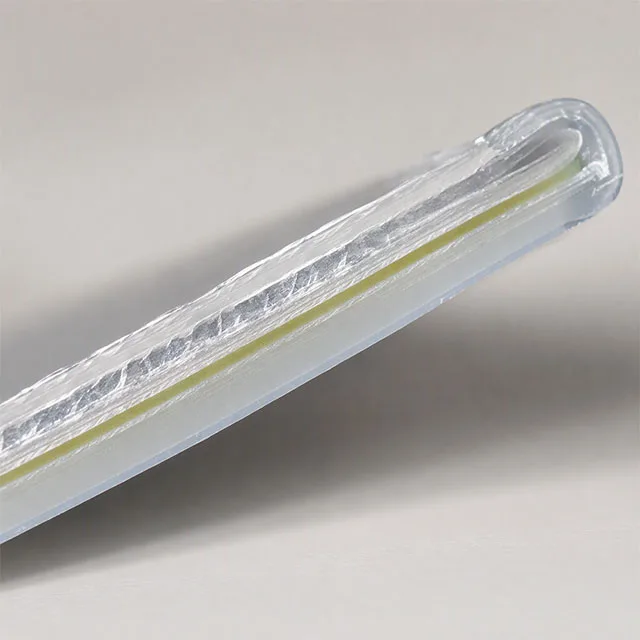

The lining of a flat bottom box pouch must achieve barrier performance across a geometrically complex shape — the rectangular bottom panel, side gussets, and front/back panels all meet at multiple seal junctions where leak paths can form if materials are not precisely matched.

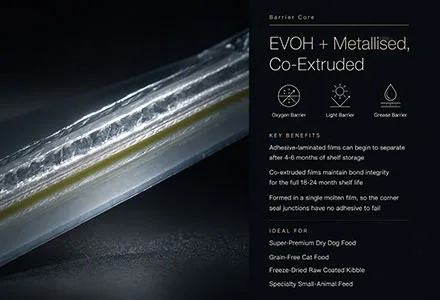

We address this with a specialized co-extruded barrier film that combines EVOH oxygen barrier, aluminum metallization for light blocking, and grease-resistant PE in a single film structure. The co-extrusion process — where all layers are formed simultaneously in a single molten film rather than laminated together post-production — eliminates the inter-layer adhesive failure risk at the critical corner seal junctions. Adhesive-laminated films can begin to separate at these multi-directional stress points after 4-6 months of shelf storage; co-extruded films maintain bond integrity for the full 18-24 month shelf life.

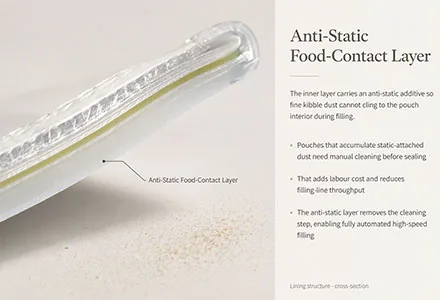

The inner food-contact layer includes an anti-static additive that prevents the fine kibble dust generated during filling from clinging to the pouch interior — a seemingly minor detail that actually has significant impact on filling line efficiency. Pouches that accumulate static-attached dust require manual cleaning before sealing, adding labor cost and reducing throughput. Our anti-static PE eliminates this step entirely, enabling fully automated high-speed filling operations.
